simpleGNSS – Basic Starter Kit
 | 2 years worldwide warranty | |
 | ||
 | This product has quantity discounts available: | |
| <50 units | USD $108.00 | |
| >=50 units | Contact us for special pricing | |
| >500 units | Contact us for special pricing | |
 | Got any questions? Contact us! - a real human (not AI) will answer in <24 hours! | |

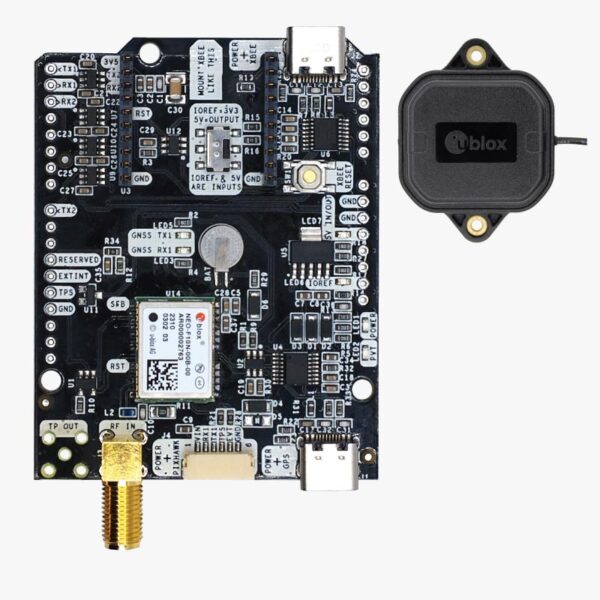

This standalone set of dual band (L1/L5) GNSS board based on u-blox NEO-F10N + u-blox ANN-MB1-00 antenna is everything that you need to achieve submeter level accuracy and evaluate dual band (L1/L5) GNSS technology at the most affordable cost.
simpleGNSS Pro (NEO-F10N) allows you to evaluate solid sub-meter dual band (L1/L5) GNSS positioning technology, both in rural and urban environments. It’s based on u-blox NEO-F10N and can be used standalone. Or connected with Arduino, Ardupilot / Pixhawk (JST connector), Raspberry Pi, Nvidia, STM32 and ESP32 platforms, as a shield. It can provide up to 10 positions every second.
It is fully compatible with Arduino, STM32 Nucleo, Raspberry Pi, Nvidia Jetson, ROS and Pixhawk / Ardupilot.
More details are available in the Specifications and Documentation tabs.
Good to know:
– This product is recommended if you want to evaluate u-blox NEO-F10N
NEO-F10N features
- Sub meter level precision
- <1.5m in standalone mode
- <0.9m standalone with SBAS coverage
- Update rate
- Default: 1Hz
- With maximum performance: up to 8Hz
- With reduced performance: up to 10Hz
- Multi band: L1, L5 support
- Multifrequency and Multiconstellation:
- GPS: L1C/A L5
- GLONASS: L1OF
- Galileo: E1-B/C E5a
- BeiDou: B1C B2I
- NavIC: SPS-L5
- QZSS: L1Sb
- SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPan
- Start-up times:
- First position fix: 27 seconds (cold), 2 seconds (hot)
- Operating temperature Range: -40 to +85 deg С
- Documentation: RED, RoHS, UKCA
User Guide
Datasheet
Request CAD model - Check the Antenna Installation Guide
Certifications:
Accessories:
